| Sales Number: | 00701-XXX |  |
| Manufacturer Number: | K2.LC.101G.00701.XXX | |
| Manufacturer: | Fiberhk | |

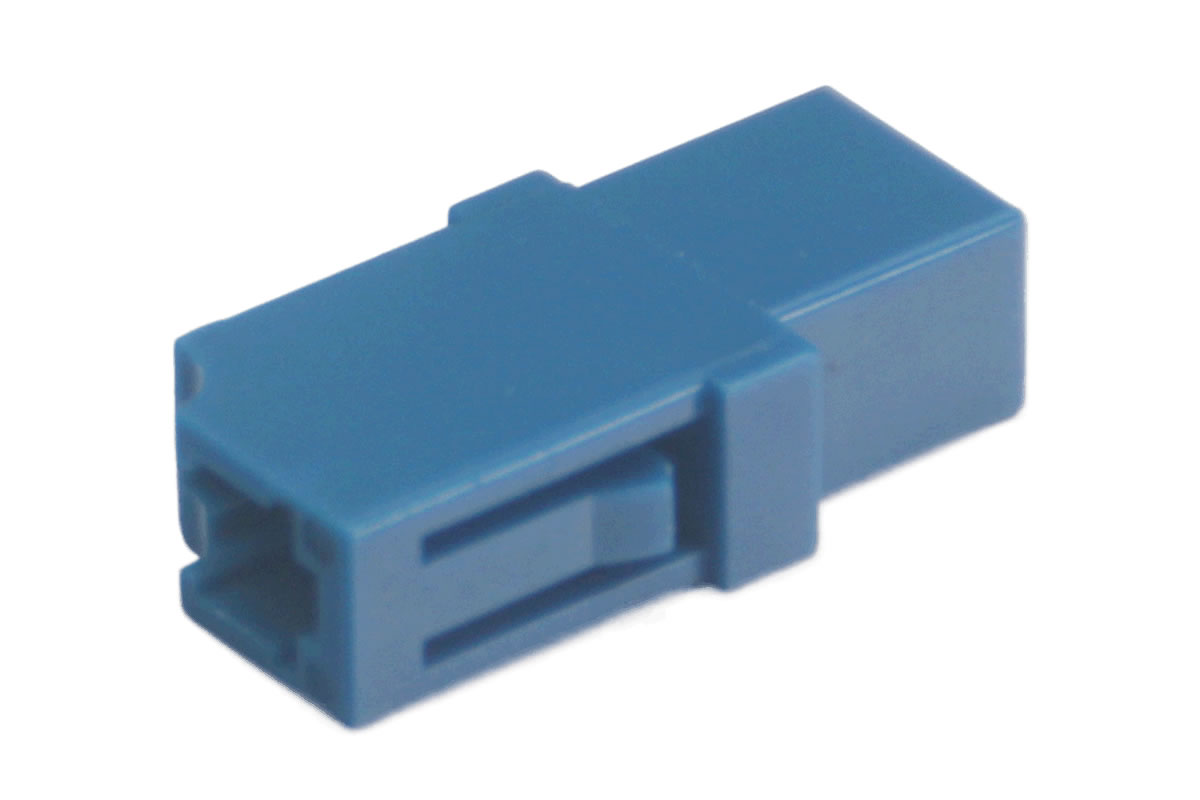

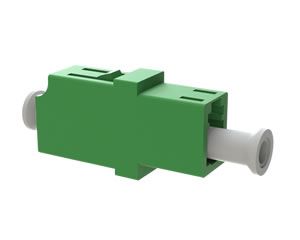

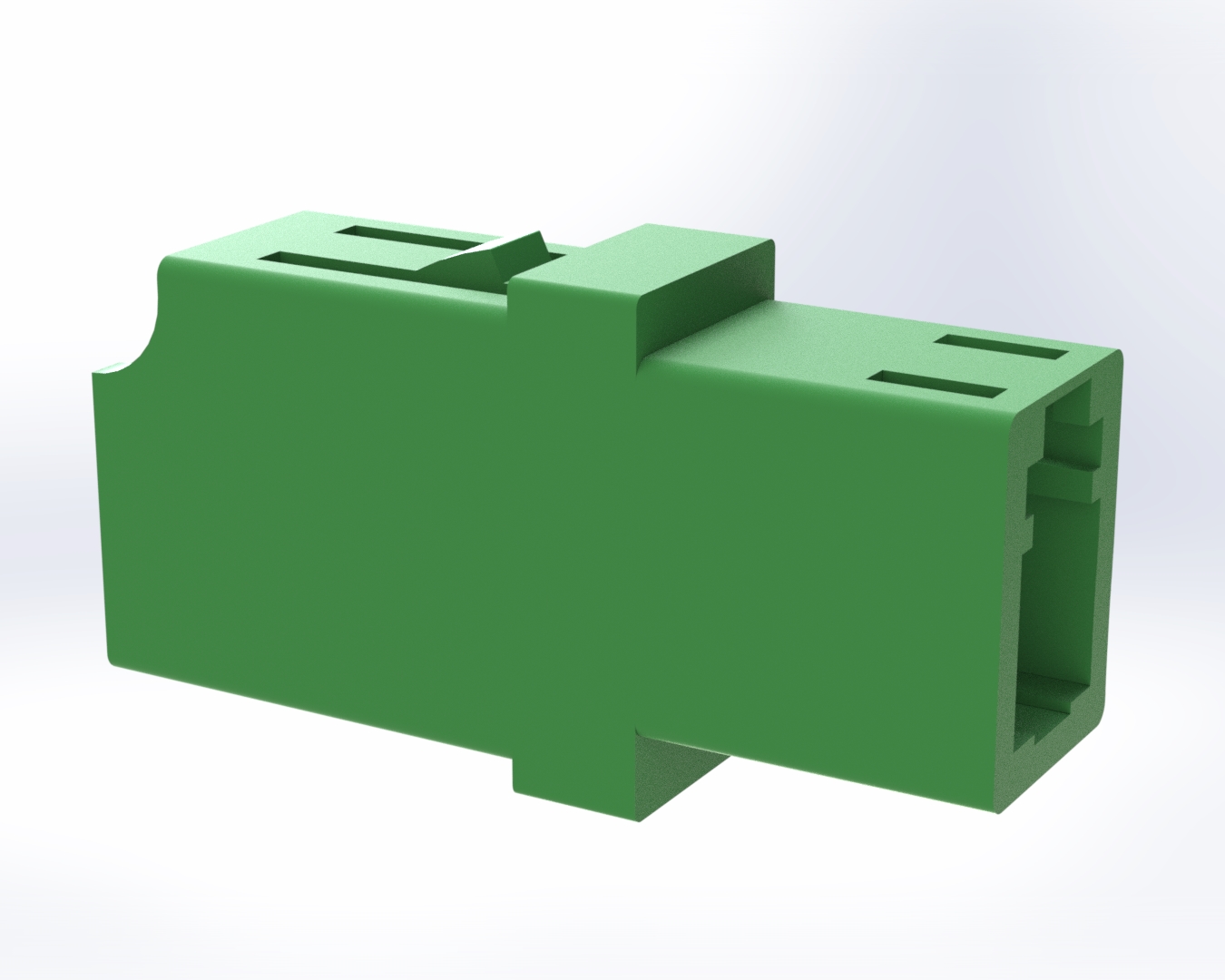

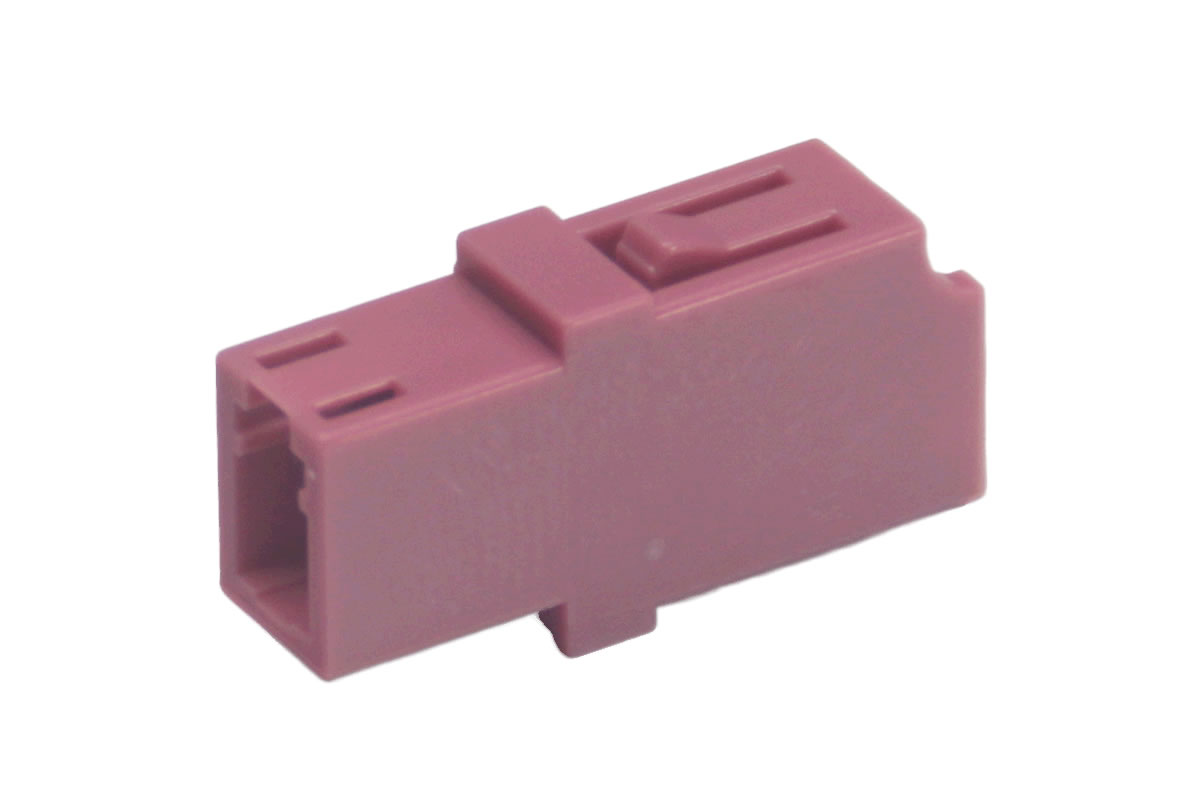

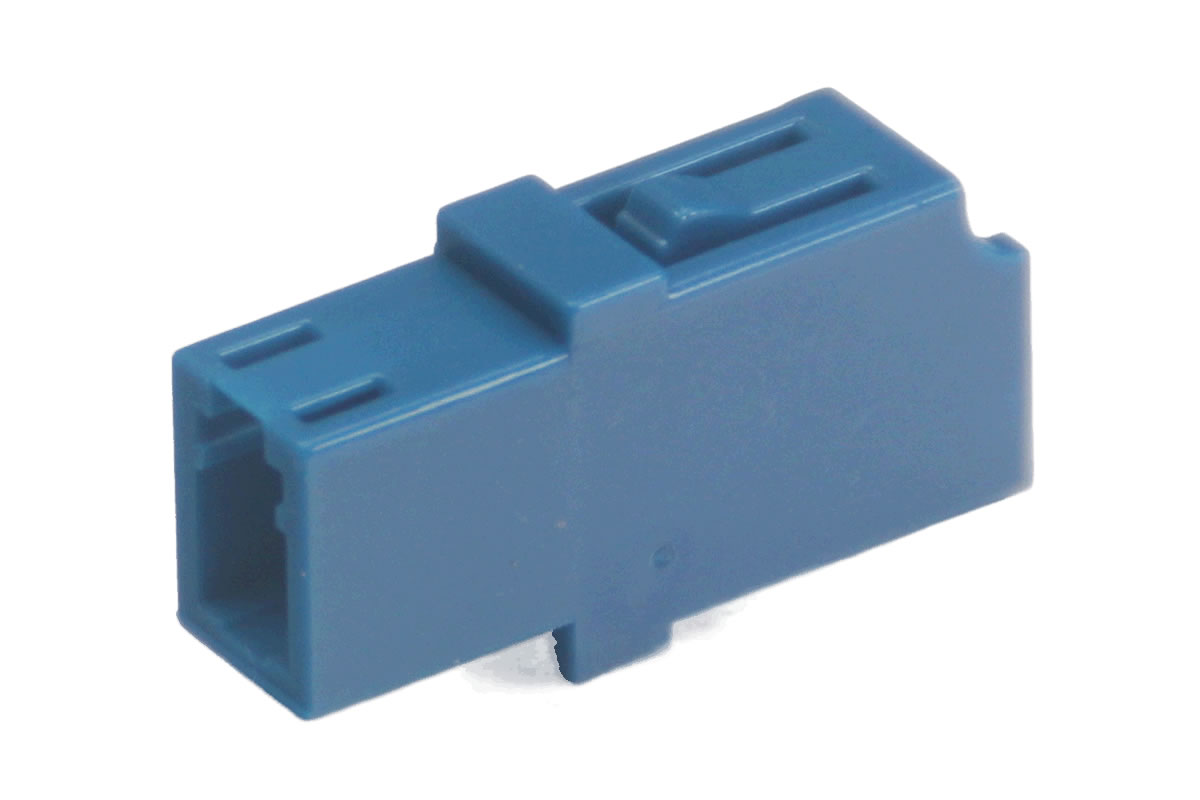

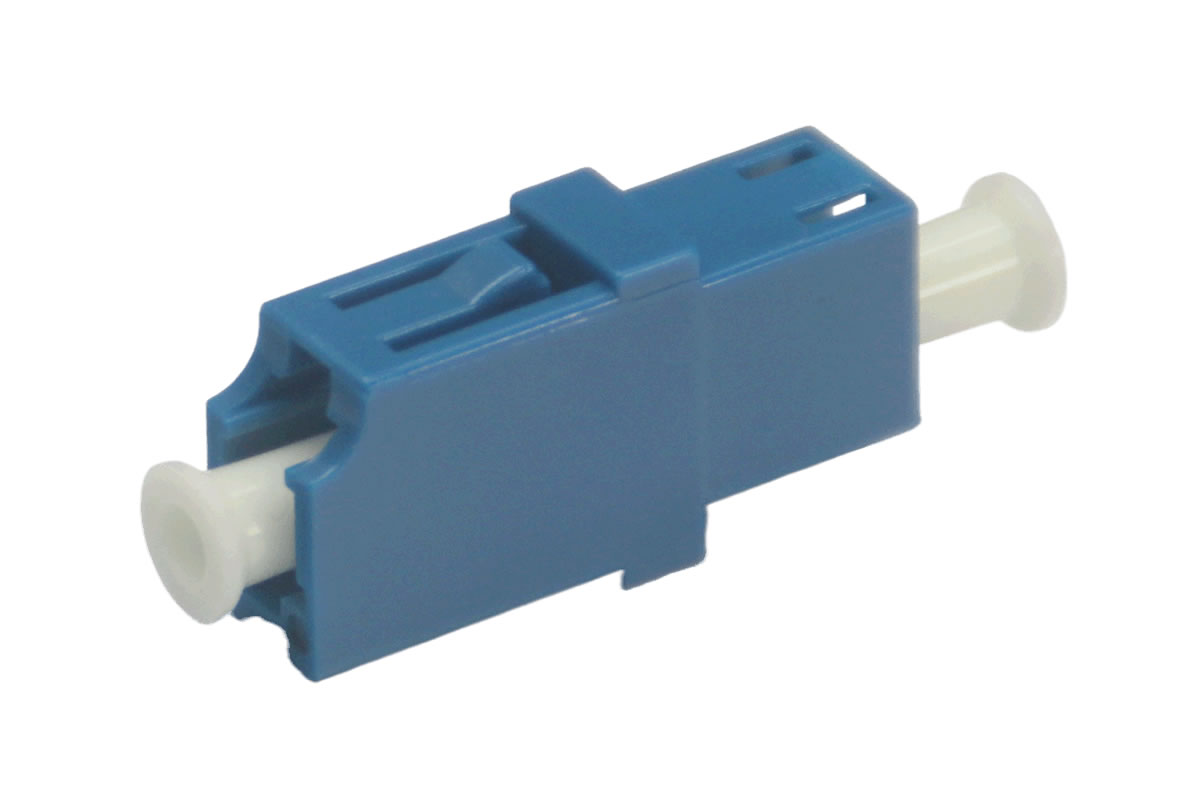

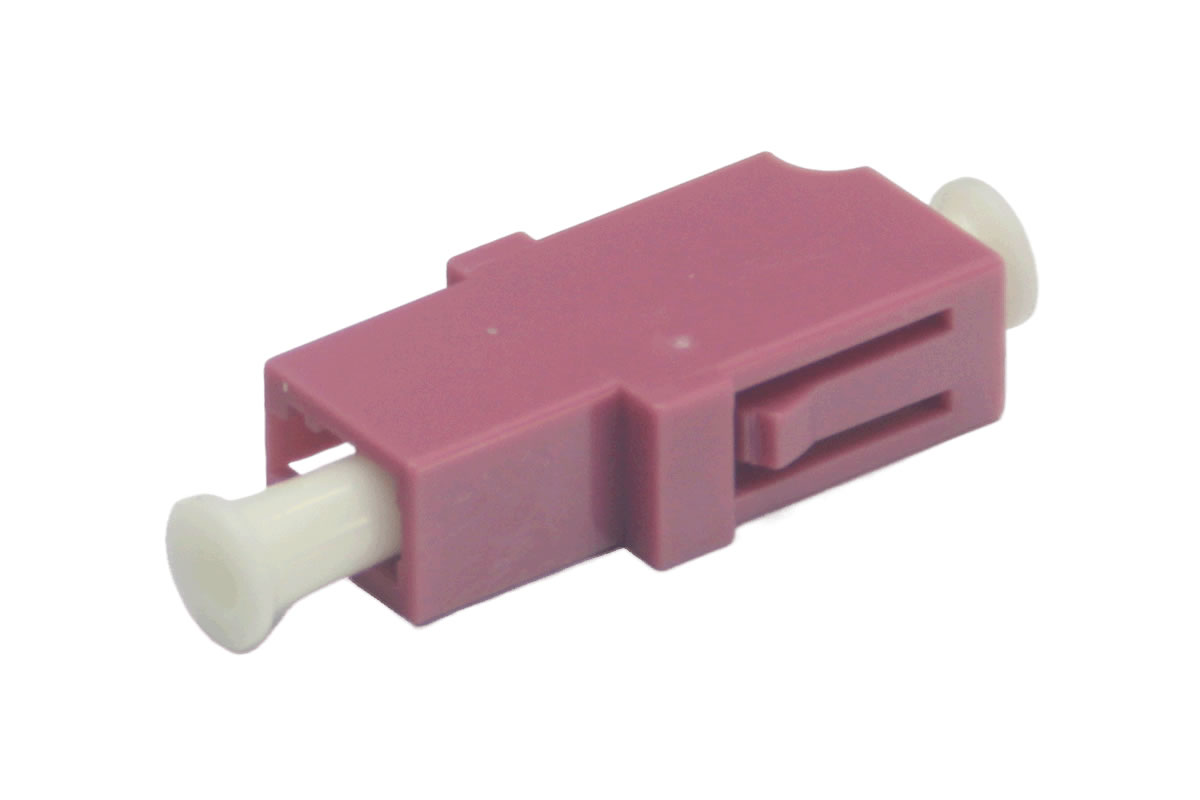

| Describe: | LC Simplex Adapter -Integrated | |
| Product Drawings: | 00701-XXX | |
| Standards Compliance |
| ☑ ISO/IEC 11801 |
| ☑ Cenelec EN 50173-1 / 50173-5 |
| ☑ ANSI/TIA-568 D.3 |
| ☑ ISO/IEC 24764/ TIA-942 |
| ☑ RoHS, REACH SvHC compliant |
| Features |
| ● Low insertion loss |
| ● Environmentally stable |
| ● Good insertion/extraction life |
| ● Easy installation |
| ● Hign reliability |
| Standards Compliance |
| ☑ ISO/IEC 11801 |
| ☑ Cenelec EN 50173-1 / 50173-5 |
| ☑ ANSI/TIA-568 D.3 |
| ☑ ISO/IEC 24764/ TIA-942 |
| ☑ RoHS, REACH SvHC compliant |
| Technical and Mechanical Performance | ||
|---|---|---|
| Types: | LC | |
| Port Path: | Simplex | |
| Flange: | Without Flange | |
| Integrated/Split body | Integrated | |
| Frame Material: | Plastics(PC) | |
| Sleeve Material: | ZrO2 | |
| Dust Cap Style: | FL01/02/03 | See accessory style for details |
| Colour: | Blue/Green/Turquoise/Beige | Support personalized customization |
| Magnitude: | ≥ 500 | |
| IP: | IP20 | |
| Ambient temp. (operation) | -40°C ~ +80°C | |
| Ambient temp. (storage) | -40°C ~ +85°C | |
| Insertion Loss (dB)： | Typical ≤ 0.15dB, max ≤ 0.20dB | |
| Sleeve Pull Force： | 1~3N | |
| Insertion Loss (dB)： | ≤ 0.20dB | |
| Return Loss (dB) Singlemode: | UPC ≥ 30dB | APC ≥ 35 dB | |
| Return Loss (dB) Multimode: | PC ≥ 45 dB | |
| Ordering Information | ||||||
|---|---|---|---|---|---|---|
| Product Name | MFR No | Sales No | Shuttering | Material | Colour | Dust Cap Style |
| LC Simplex Adapter -Integrated | K2.LC.101G.00701 | 00701 | Unshuttered | 03 PC 11 PC/ABS | 01 Blue 02 Green 04 Beige | FL01:Cylindrical shape FL02:Square Column FL03:Bevel Connection |

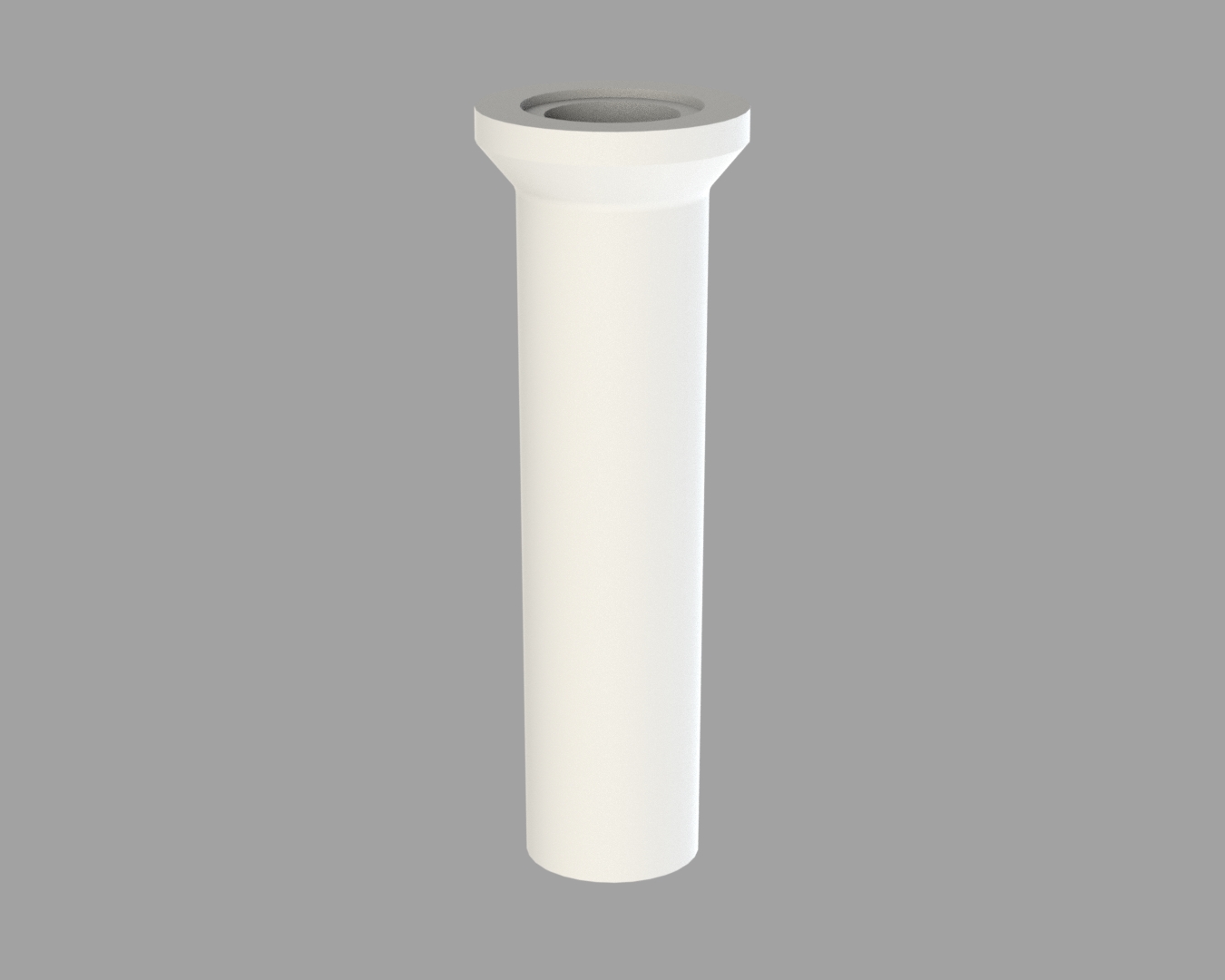

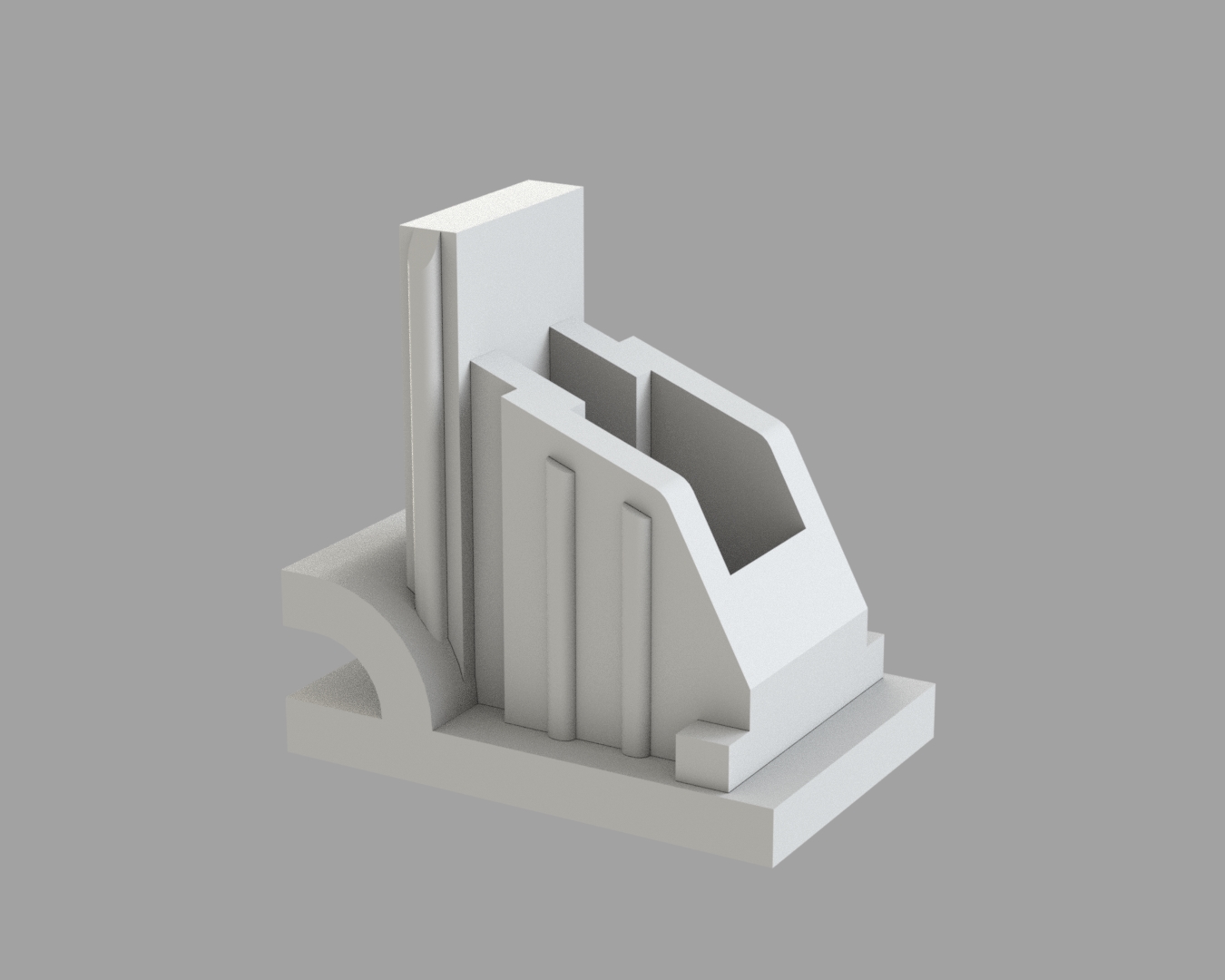

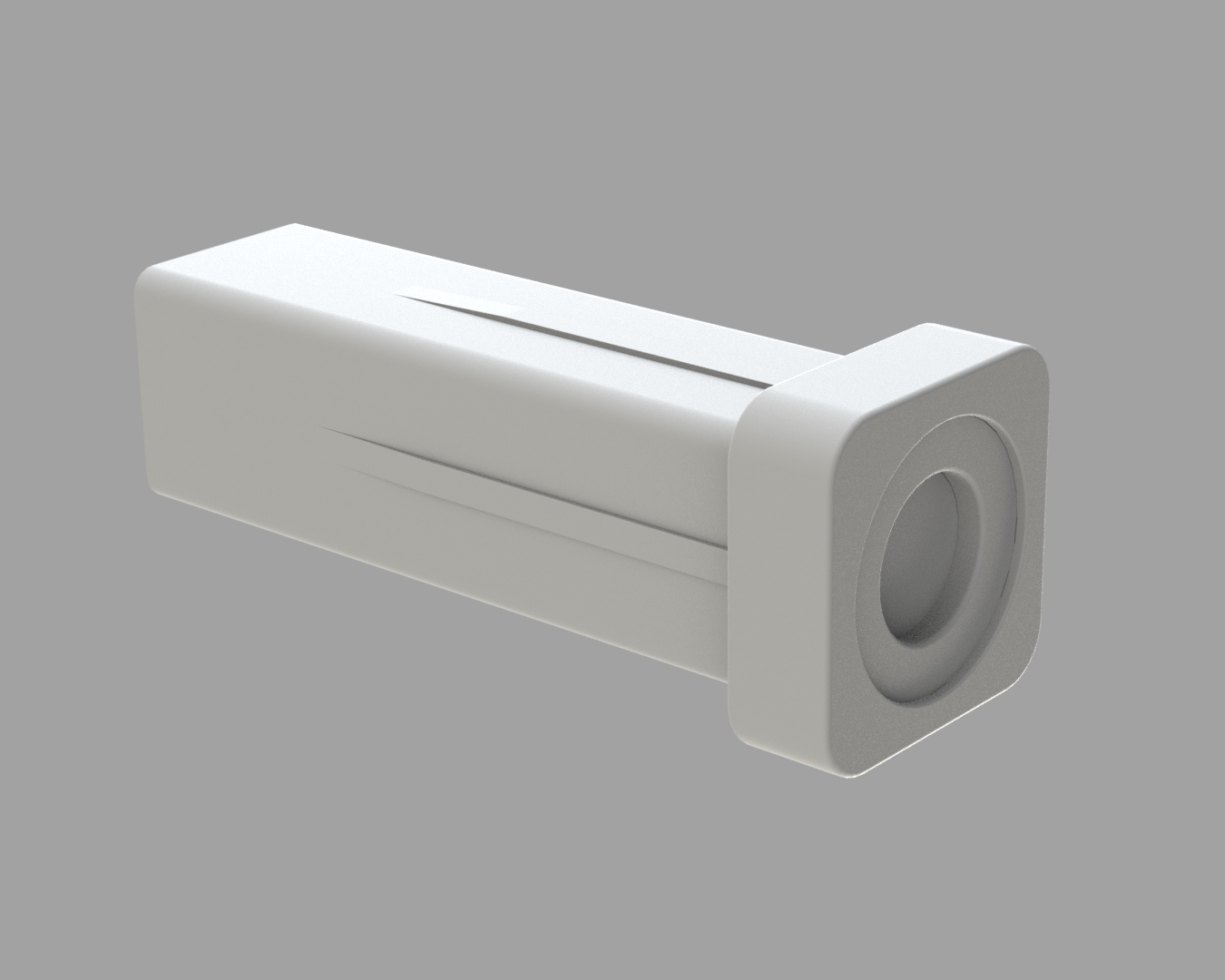

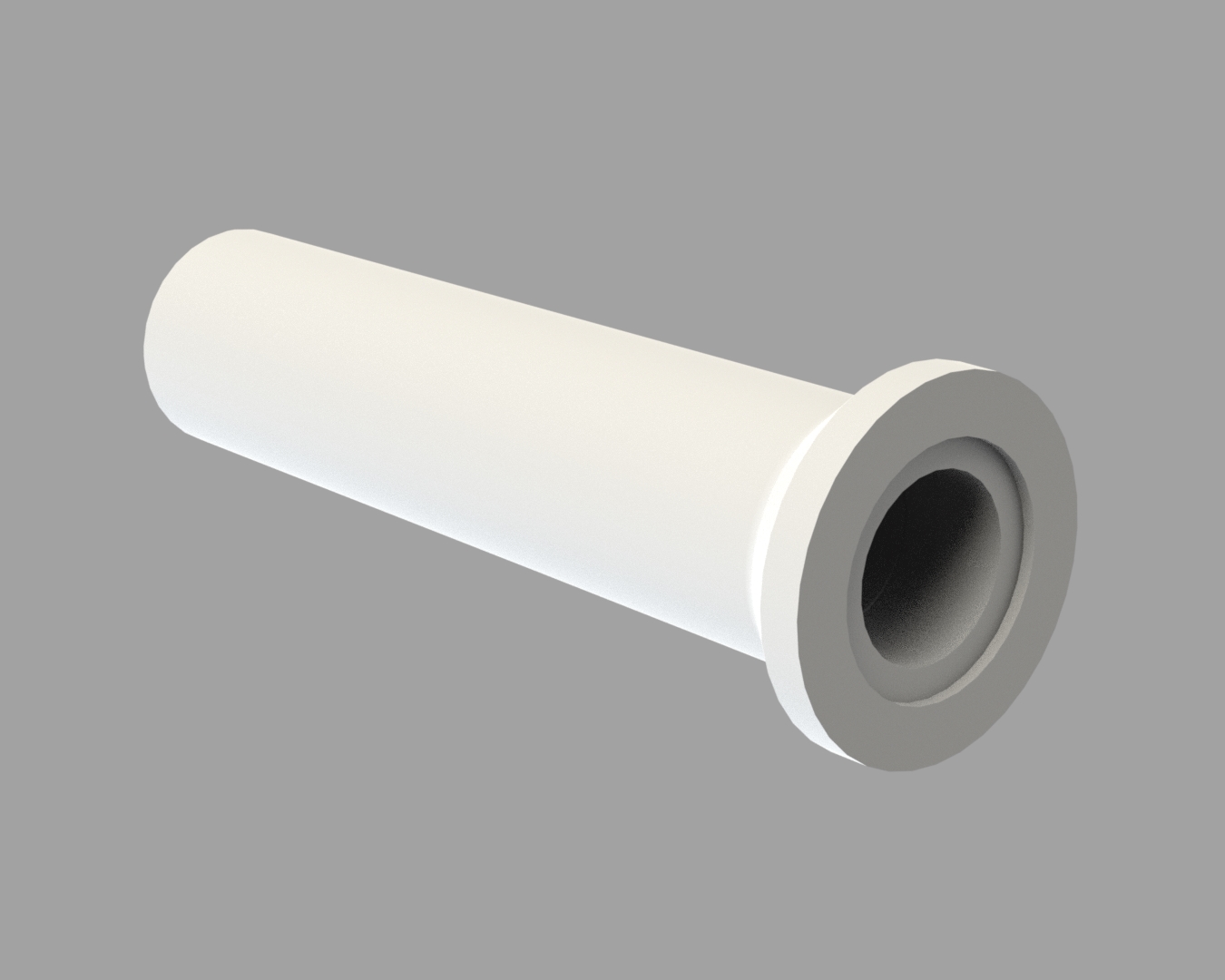

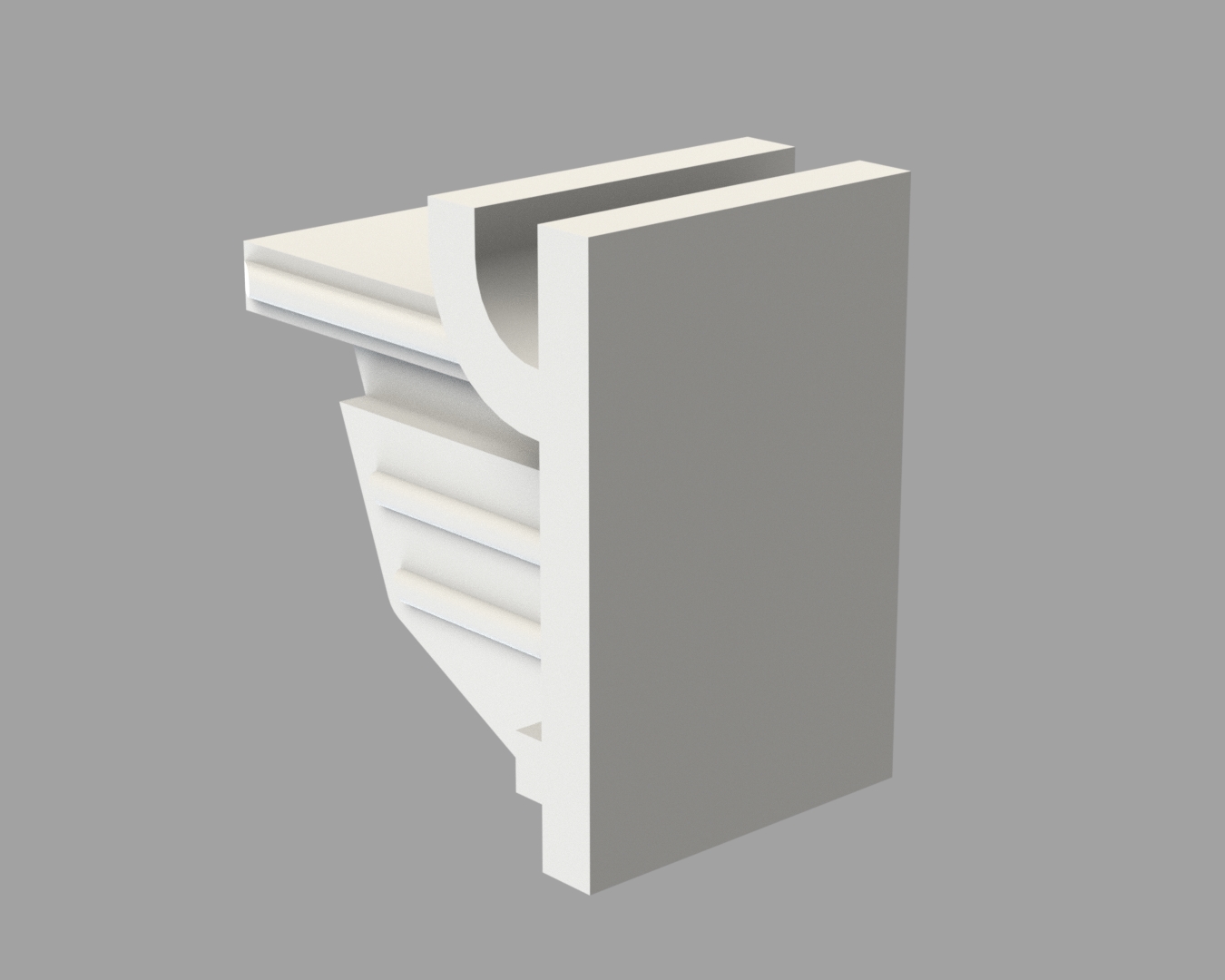

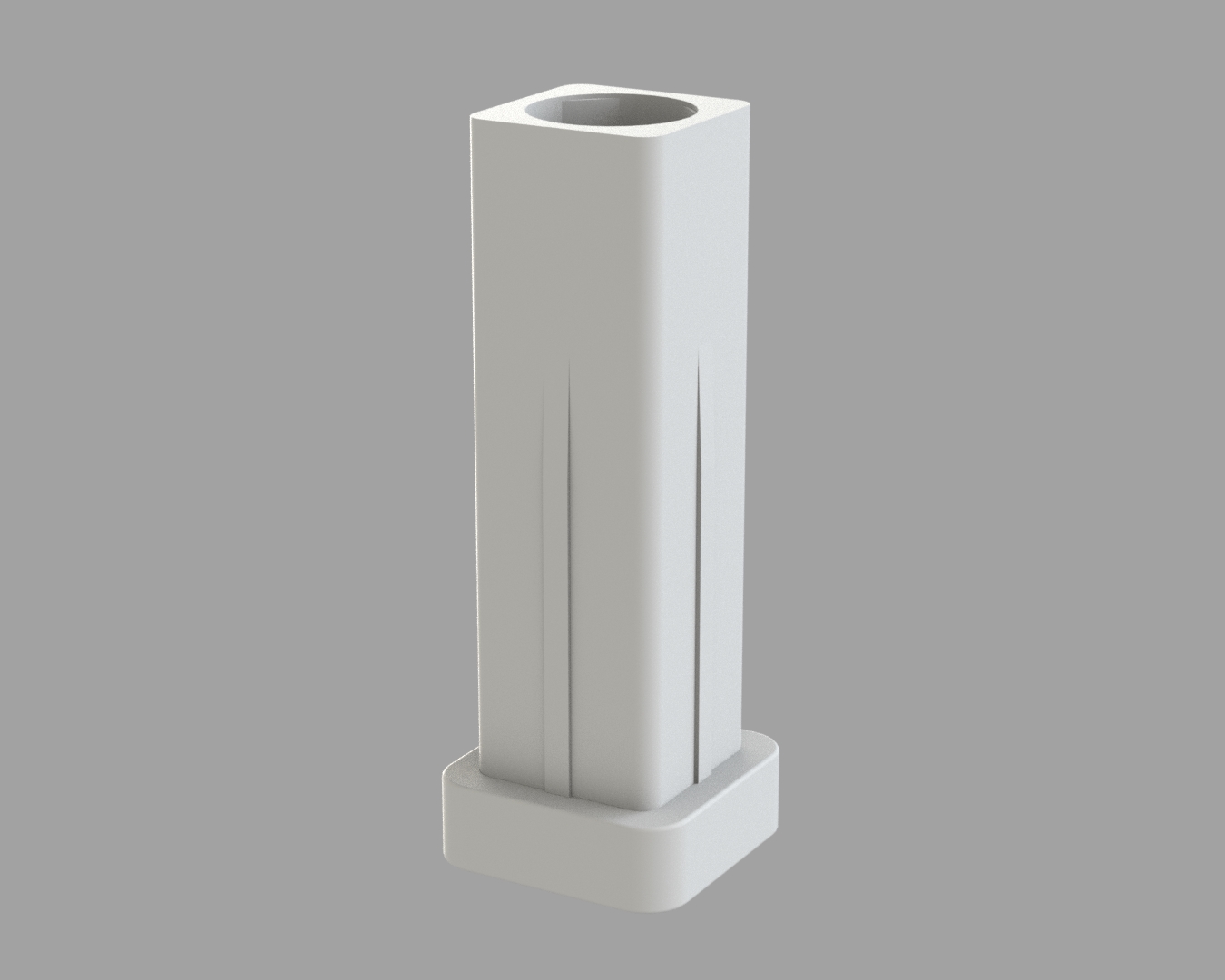

| FL01-Cylindrical Shape | FL02-Square Column | FL03-Bevel Connection |
|---|---|---|
 |  |  |
 |  |  |
| The usual color is white and supports custom colors | ||
| Packaging Method | |
|---|---|

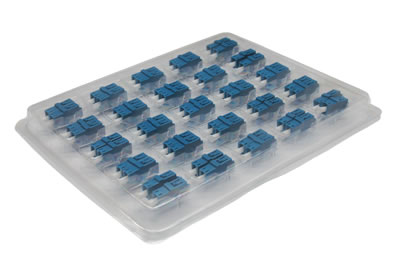

 | INNER PACKING BLISTER BOX MPQ: 50 |

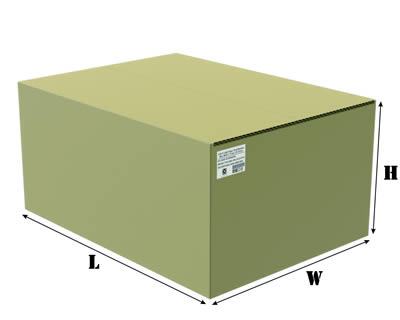

 | OUTER PACKING CTN: CORRUGATED CARTON QTY: 5000 PCS N.W: 11.3Kg G.W: 7.3Kg MEAS: L47*W37*M35CM |
CNHTS: 8538900000
CAHTS: 8536700000
ECCN: EAR99
