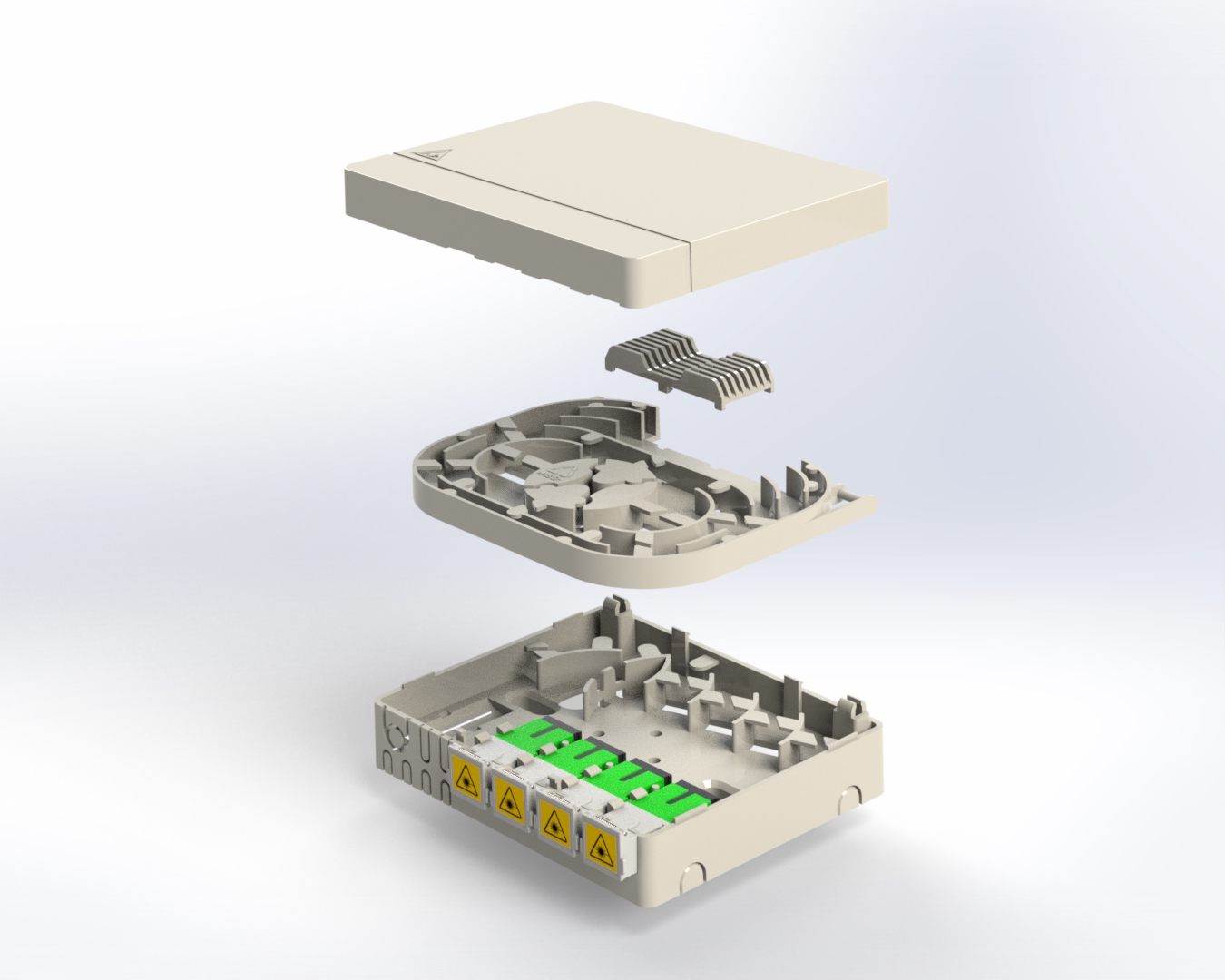

FHK designs and manufactures high-density Fiber Termination Boxes (FTBs) engineered for reliable network distribution and protection. Built with durable, weather-resistant materials, our termination boxes provide secure splicing, patching, and storage for fiber optic cables in demanding indoor and outdoor environments. Each unit undergoes rigorous testing to ensure optimal performance and longevity.

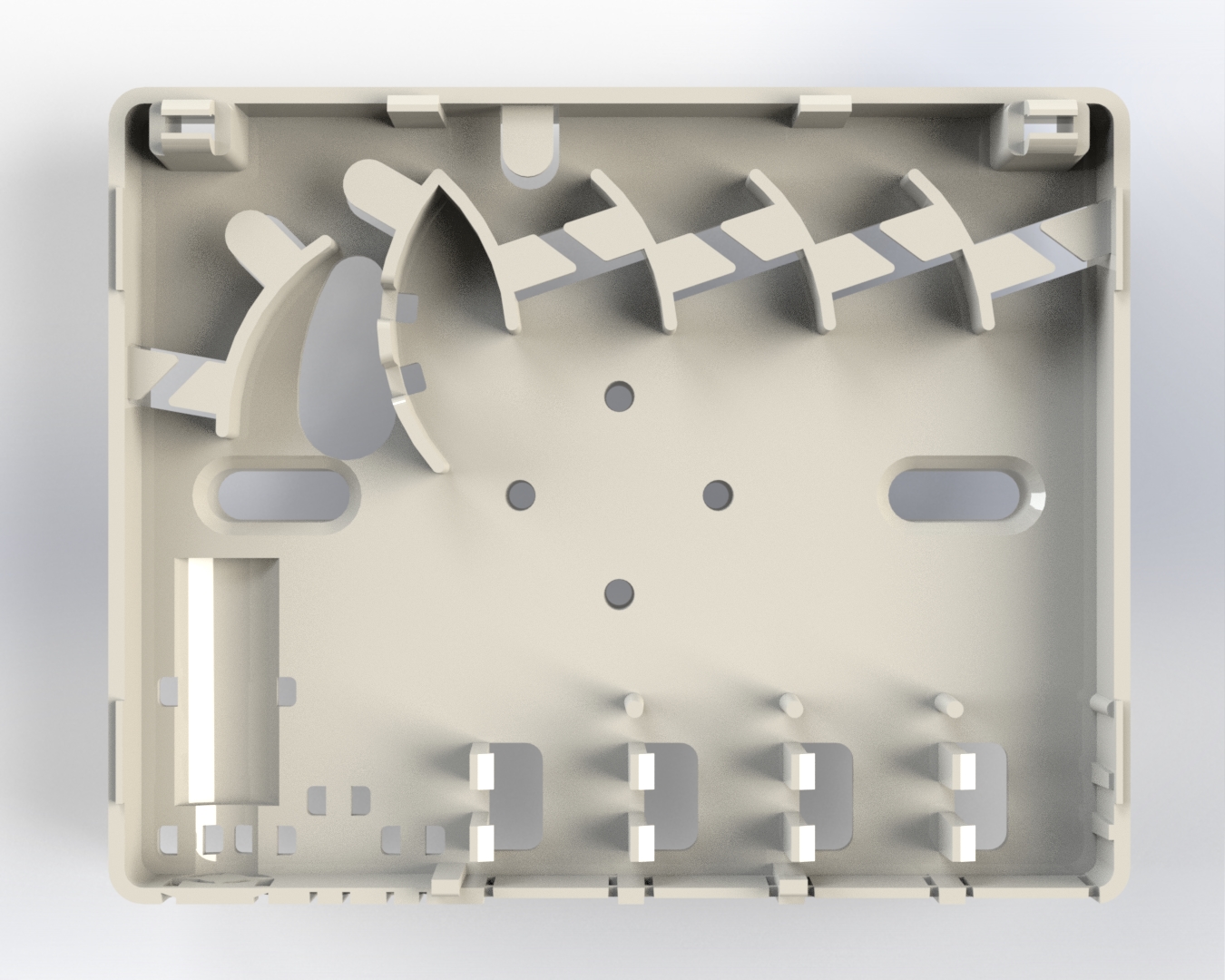

| Category | Parameter | Specification | Notes |
|---|---|---|---|
| Basic Identification | Model Number | FT-D-4-J-2501 | |
| Product Type | Desktop Fiber Termination Box | IEC 61753-1 | |
| Customization Options | Port count, Adapter type, Color | Customer Requirements | |
| Physical Specs | Dimensions (H×W×D) | 100×80×30 mm | |
| Weight | 66.7 g | ||
| Housing Material | Flame-Retardant ABS/PC Alloy | UL 94 | |
| Color | Off-White (RAL 9010) | ISO 11664 | |
| Optical Performance | Insertion Loss | ≤0.2 dB per connection | IEC 61300-3-4 |
| Return Loss (UPC) | ≥55 dB | IEC 61300-3-6 | |
| Adapter Type | SC/UPC Simplex (Ceramic ferrule) | IEC 61754-4 | |
| Capacity & Configuration | Adapter Capacity | 4 ports | SC simplex / LC duplex compatible |
| Fiber Count | 4 fibers (SC) 8 fibers (LC) | Per port fiber mapping | |
| Storage Tray | 8-channel fiber organizer | YD/T 2150-2010 | |
| Environmental Ratings | Operating Temperature | -20°C to +70°C | IEC 60068-2-1/2 |
| Storage Temperature | -40°C to +85°C | IEC 60068-2-78 | |
| Protection Rating | IP30 (Indoor use only) | IEC 60529 | |
| Relative Humidity | 5% to 95% non-condensing | IEC 60068-2-56 | |
| Mechanical Durability | Mating Cycles | >500 cycles (per adapter) | IEC 61300-3-28 |
| Cable Retention Force | ≥40N axial pull | IEC 61300-2-22 | |
| Impact Resistance | 1m height (6 surfaces ×1) | IEC 61300-2-2 | |
| Compliance & Certification | Safety Certifications | CE, RoHS, REACH | EU Directives |
| Quality Management | ISO 9001:2015 Certified | ISO Certification | |
| Flammability Rating | UL94 V-0 | UL Standard |
| Item | Details | Applicable Products |
|---|---|---|
| Adapters | SC Simplex×n | By port count |
| LC Duplex×n | By port count | |
| MINI Waterproof Adapters | FT-O-*-MIN | |
| Splitter Module | 1:8 PLC Splitter | FT-O-8-P-J-MIN |
| 1:16 PLC Splitter | FT-O-16-P-J-MIN | |
| 1:24 PLC Splitter | FT-O-24-P-J-SC/LC | |

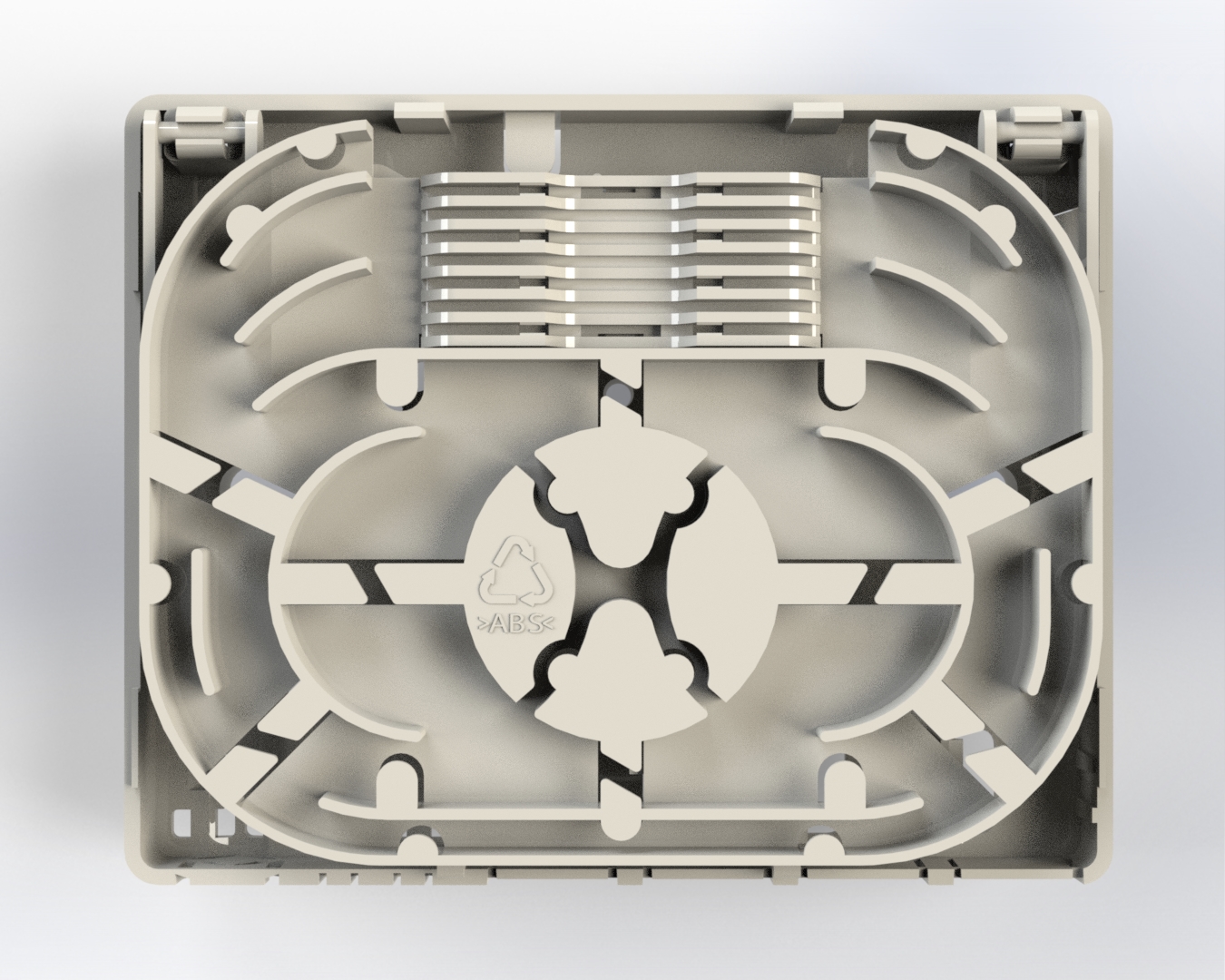

| Splicing Accessories | Fusion Tray | All series |
| Heat Shrink Tubes×n | By port count | |
| Cable Organizers×n | All series | |
| Mounting Kit | Wall Mount Bracket | FT-O/R series |
| Rack Ears | FT-R series | |
| Expansion Screw Set | All series | |
| Cable Ties | All series | |
| Sealing Components | Waterproof Mastic | FT-O series |
| Sealing Grommets× | FT-O series | |
| Tools | Fiber Optic Cleaning Pen | |
| Cable Slitter |
| Parameter | Wall-mount (W) | Desktop (D) | Rack-mount (R) | Outdoor (O) |
|---|---|---|---|---|
| Mounting Method | Wall fixation | Free-standing placement | 19" rack installation | Pole/wall dual-mount |
| Included Hardware | Expansion screws (4x) Wall plugs Mounting template | Anti-slip rubber pads (4x) Desktop organizer clip | Rack ears (pair) M6 cage nuts Rack screws | Stainless steel pole clamp Hex bolts set Waterproof sealing kit |
| Tool Requirements | Electric drill 6mm masonry bit Hammer Screwdriver | None required | Phillips screwdriver Rack adjustment tool | Adjustable wrench Torque driver (15Nm) |
| Installation Time | 15-20 minutes | Instant | 10-15 minutes | 25-30 minutes |
| Weight Capacity | Max 5kg per mounting point | Max 3kg total | 1U space (48 ports max) | Wind load 150km/h |
| Special Notes | Minimum wall thickness: 100mm | Avoid dire | Requires standard 19" rack depth ≥300mm | Concrete pole Ø50-150mm compatible |
| Field | Code/Description | Additional Notes |
|---|---|---|
| Usage Environment | W (Wall-mount) | Wall Installation Design |
| D (Desktop) | Compact design (≤8 ports) | |
| R (Rack-mount) | 19" rack installation | |
| O (Outdoor) | Includes waterproof/armored design, compliant with IEC 61300-2-22 | |
| Port Capacity | Numeric (Actual port count) | Standard values: 1/2/4/8/12/24/48 Extended values: 96 (use actual number for >48 ports) |
| Functional Features | S (Splicing Only) | Only includes splice tray |
| P (With PLC Splitter) | Split ratio 1:N (N=2/4/8/16/24/32) | |
| J (Splicing + Adapters) | Pluggable adapter panel | |
| A (Adapters Only) | Adapter panel without splicing capability | |
| +F (Enhanced Fiber Storage) | Increase Fiber Storage Space By 30% | |
| +D (Drawer Type Design) | Slide-out tray for maintenance | |
| Adapter Type | SC (SC Simplex) | Standard type |
| LC (LC Duplex) | High-density type | |
| MPO (MPO Multi-fiber) | 12/24 fibers | |
| MIN (MINI Waterproof) | Huawei compatible (Ø8.5×20mm) | |
| SC/LC (Hybrid Interface) | Supports dual types of adapters | |
| Special Design | +K (Armored) | Crush resistance >500N/10cm |
| +L (Lightning Protection) | Grounding terminal, insulation resistance ≥2×10⁴ MΩ | |
| +H (High Density) | Supports 48 ports in 1U space |
| Feature Category | Feature Description | Applicable Products |
|---|---|---|
| Sealing Design | Dual O-ring Sealing Structure | FT-O series |
| Waterproof Breather Valve | FT-O-*-MIN | |
| Anti-rodent Material | ABS + PC composite | |
| Splitting Function | Plug-in PLC Module | P-type (Splitter) |
| PLC Planar Waveguide Splitter | P-type (Splitter) | |
| Split Uniformity: ±0.5dB (Full Band) | P-type (Splitter) | |
| Easy Maintenance | Tool-free Opening | FT-D-* |
| Modular Design | FT-O-24-P-J-SC/LC | |
| Front/Rear Operation Zones | FT-R series | |
| Special Protection | Lightning Protection Terminal | +L type |
| Stainless Steel Armoring | +K type | |
| Explosion-proof Design | FT-O-24-S |
Q: Do you support customization??
A: Definitely yes, customization is available according to your product requirements.
Q: What is the best price you can offer?
A: The unit price will vary according to the material you want and the quantity you order.
Q: How long will it take to ship to my country?
A: Generally it will take 3 to 7 days after receiving your advance payment. The specific delivery timedepends on the items and the quantity of your order.
Q: Can l get a sample first?
A: We do offer samples before making any production so that the production is up to the buyer’s ex-pectation.Samples can be delivered within 5-8 days.
Q: Can l add my own logo?
A: Yes, OEM and ODM is available.
Q: How do you guarantee quality?
A: We have a good quality control team, Raw material is tested before production and there is strictsupervision during the production process.We will test the products after they are finished.Beforethe final packaging we will test them one by one again.
Q: Do you offer a guarantee for the products?
A: Yes, we offer a 1-2 years warranty on our formal products.
