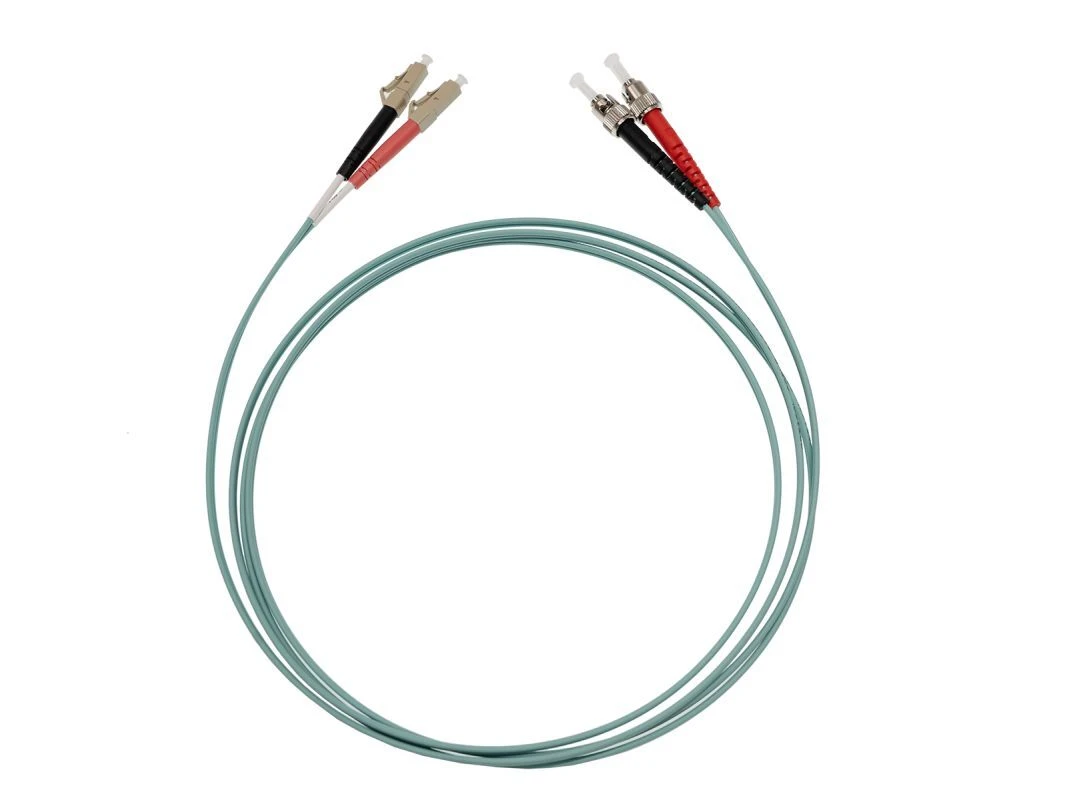

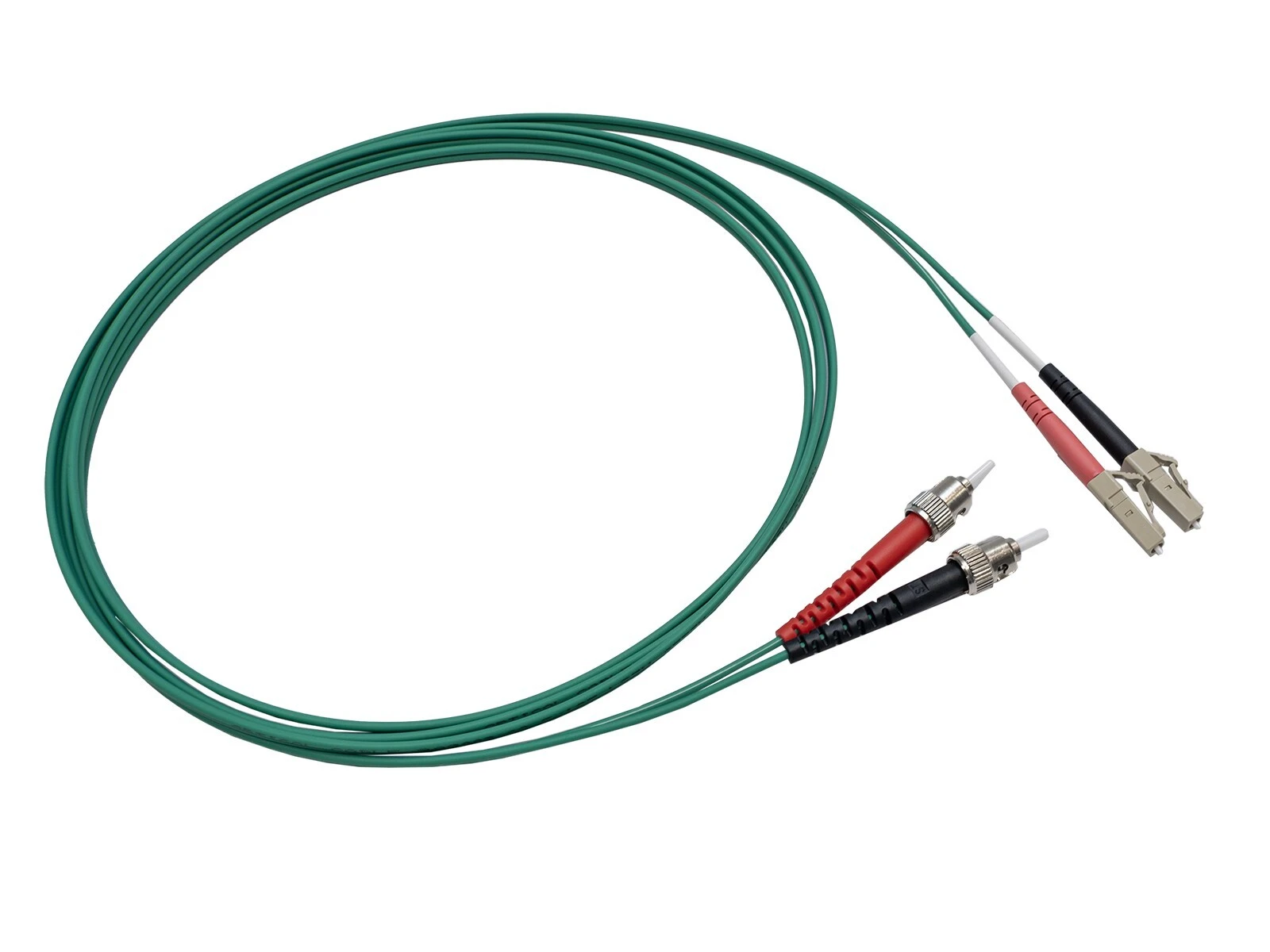

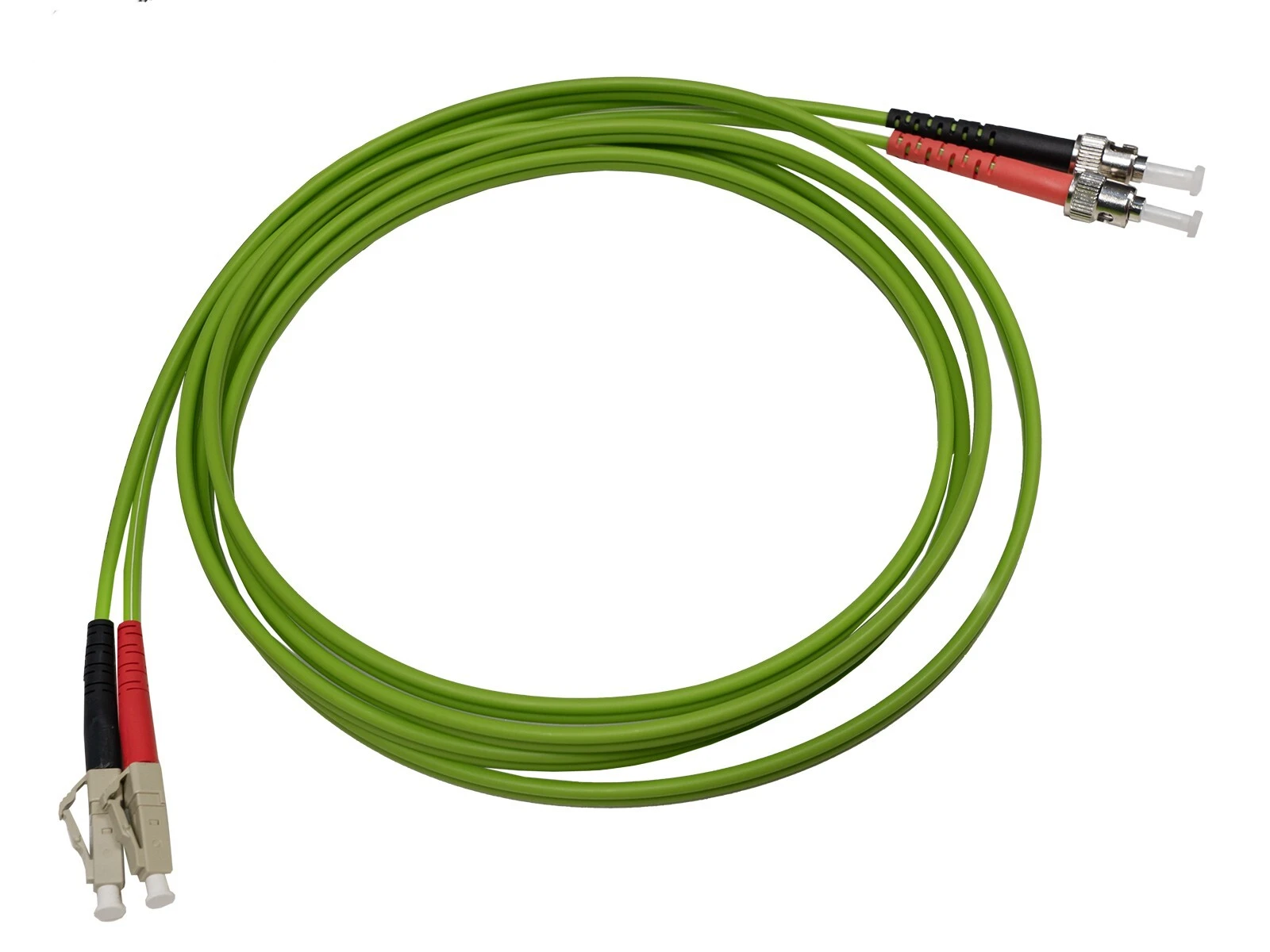

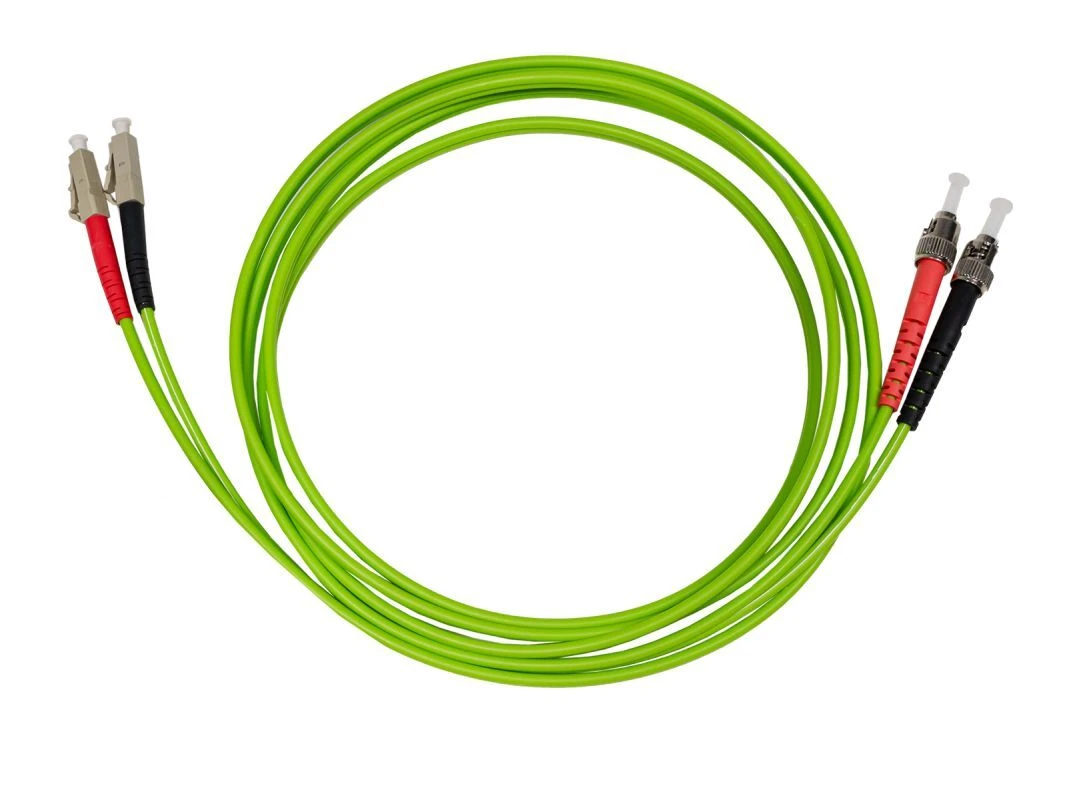

FHK operates a state-of-the-art cable assembly facility specializing in the manufacture of high-performance patch cords and pigtails. Utilizing premium-grade connectors and optical cables, each assembly undergoes
| Parameter | Single Mode (SM) | Multimode (MM) | Test Standard |
|---|---|---|---|
| Insertion Loss | ≤0.3 dB | ≤0.3 dB | IEC 61300-3-4 |
| Return Loss | ≥50 dB (PC/UPC) | ≥35 dB (OM3/OM4) | IEC 61300-3-6 |
| ≥60 dB (APC) | ≥30 dB (OM1) | ||
| Repeatability | ≤0.1 dB | ≤0.1 dB | IEC 61300-3-28 |
| Durability | ≤0.2 dB change (500 matings) | ≤0.2 dB change (500 matings) | IEC 61300-3-28 |
| Interchangeability | ≤0.2 dB | ≤0.2 dB | IEC 61300-3-32 |
| Tensile Strength | >100 N (SC/FC/ST) | >100 N (SC/FC/ST) | IEC 61300-3-12 |
| >80 N (LC/MU) | >80 N (LC/MU) | ||
| Operating Temperature | -40°C ~ +85°C | -40°C ~ +85°C | IEC 61753-1 |
| Bend Radius | ≥30 mm (static) | ≥30 mm (static) | IEC 61753-1 |
| ≥15 mm (dynamic) | ≥15 mm (dynamic) |
| Parameter | Single Mode (SM) | Multimode (MM) | Key Requirement |
|---|---|---|---|
| Insertion Loss | ≤0.5 dB | ≤0.5 dB | Average of 12/24 fibers |
| Core-to-Core Variation | ≤0.3 dB | ≤0.3 dB | Loss deviation within connector |
| Alignment Accuracy | ≤1.0 μm | ≤1.5 μm | Guide pin precision (IEC 61754-7) |
| Mating Force | ≤40 N | ≤40 N | With push-pull housing |
| End Face Geometry | Radius: 10-25 mm | Same as left | 3D interferometry (IEC 61300-3-35) |
| Apex Offset: ≤50 μm |
| Parameter | Requirement | Test Method |
|---|---|---|
| Fusion Splice Strength | >1.0 GPa | IEC 60793-1-31 |
| Bare Fiber Length | 1.0±0.1 m (Up to 3m customized) | N/A |
| Coating Diameter | 245±10 μm (Standard) | IEC 60793-1-20 |
| Thermal Aging | ≤0.1 dB change (85°C/85%RH, 500h) | IEC 61300-2-42 |
| End Face Scratches | Max Scratch: ≤5 μm | Microscopy (IEC 61300-3-35) |
| Type | Ferrule Diameter | Mating Cycles | IP Rating | Typical Applications | Locking Mechanism |
|---|---|---|---|---|---|
| E2000 | Ø1.25 mm | >500 | IP68 | Data Centers and Cloud Computing Infrastructure | Push-pull latch |
| LC | Ø1.25 mm | >500 | IP40 | High-density (SFP modules) | Latch |
| SC | Ø2.5 mm | >1,000 | IP50 | Data centers/Telecom | Push-pull |
| FC | Ø2.5 mm | >1,000 | IP67 | High-vibration environments | Threaded |
| MPO | 6.4×2.4 mm | >500 | - | 40G/100G SR4 modules | Push-pull with guide pins |
| MU | Ø1.25 mm | >500 | - | Japan market | Push-pull |
| ST | Ø2.5 mm | >500 | IP54 | Legacy networks | Bayonet |
| Parameter | Single Mode (SM) | Multimode (MM) | Key Requirement |
|---|---|---|---|
| Insertion Loss | ≤0.5 dB | ≤0.5 dB | Average of 12/24 fibers |
| Core-to-Core Variation | ≤0.3 dB | ≤0.3 dB | Loss deviation within connector |
| Alignment Accuracy | ≤1.0 μm | ≤1.5 μm | Guide pin precision (IEC 61754-7) |
| Mating Force | ≤40 N | ≤40 N | With push-pull housing |
| End Face Geometry | Radius: 10-25 mm | Same as left | 3D interferometry (IEC 61300-3-35) |
| Apex Offset: ≤50 μm |
| Parameter | Single Mode (SM) | Multimode (MM) | Key Requirement |
|---|---|---|---|
| Insertion Loss | ≤0.5 dB | ≤0.5 dB | Average of 12/24 fibers |
| Core-to-Core Variation | ≤0.3 dB | ≤0.3 dB | Loss deviation within connector |
| Alignment Accuracy | ≤1.0 μm | ≤1.5 μm | Guide pin precision (IEC 61754-7) |
| Mating Force | ≤40 N | ≤40 N | With push-pull housing |
| End Face Geometry | Radius: 10-25 mm | Same as left | 3D interferometry (IEC 61300-3-35) |
| Apex Offset: ≤50 μm |
| Product Type | Fiber Type | Fiber Spec | Structure | Conn A | Polish A | Conn B | Polish B | Diam (mm) | Length | Example Code |
|---|---|---|---|---|---|---|---|---|---|---|
| Patch cord | SM | 9/125 | Simplex | E2000 | APC | E2000 | APC | 0.9 | 0.5M 1M 1.5M 2M 3M 5M 10M 20M 25M 30M Custom lengths available | PC-SM-SX-SCA-SCA-09-1M |
| MM | 50/125 | Duplex | FC | UPC | FC | UPC | 2.0 | |||
| 62.5/125 | LC | PC | LC | PC | 3.0 | |||||
| MPO | MPO | |||||||||
| MU | MU | |||||||||
| SC | SC | |||||||||
| ST | ST |
| Product Type | Fiber Type | Fiber Spec | Structure | Conn A | Polish A | Tail End | Diam (mm) | Length | Example Code |
|---|---|---|---|---|---|---|---|---|---|
| Pigtail | SM | 9/125 | Simplex | E2000 | APC | BF | 0.9 | 0.5M 1M 1.5M 2M 3M 5M 10M 20M 25M 30M Custom lengths available | PT-SM-SX-SCA-BF-09-1M |
| MM | 50/125 | Duplex | FC | UPC | 2.0 | ||||
| 62.5/125 | LC | PC | 3.0 | ||||||
| MPO | |||||||||
| MU | |||||||||
| SC | |||||||||
| ST |
Q: Do you support customization??
A: Definitely yes, customization is available according to your product requirements.
Q: What is the best price you can offer?
A: The unit price will vary according to the material you want and the quantity you order.
Q: How long will it take to ship to my country?
A: Generally it will take 3 to 7 days after receiving your advance payment. The specific delivery timedepends on the items and the quantity of your order.
Q: Can l get a sample first?
A: We do offer samples before making any production so that the production is up to the buyer’s ex-pectation.Samples can be delivered within 5-8 days.
Q: Can l add my own logo?
A: Yes, OEM and ODM is available.
Q: How do you guarantee quality?
A: We have a good quality control team, Raw material is tested before production and there is strictsupervision during the production process.We will test the products after they are finished.Beforethe final packaging we will test them one by one again.
Q: Do you offer a guarantee for the products?
A: Yes, we offer a 1-2 years warranty on our formal products.
