Sales No. | 00501-XXX |
MFG No. | K2.SC2JF21.00501 |
Manufacturer: | FiberHK |
Product Category: | SC |

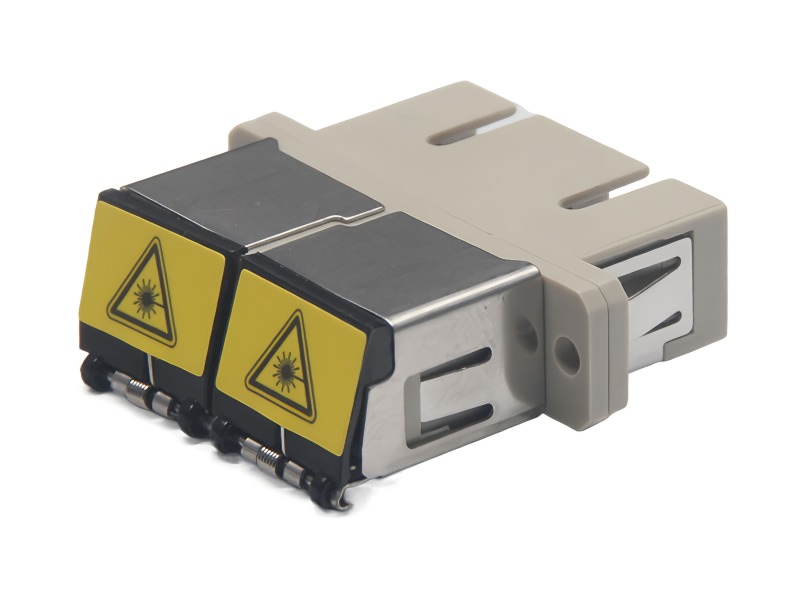

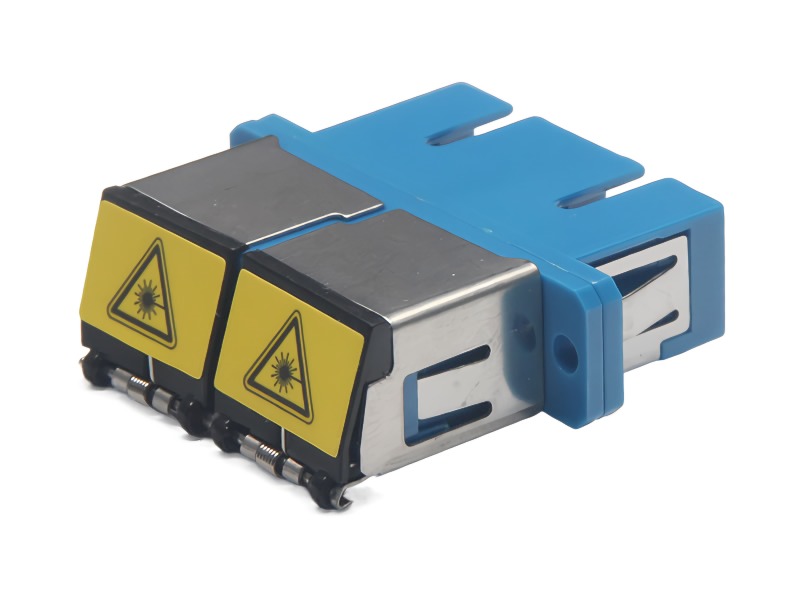

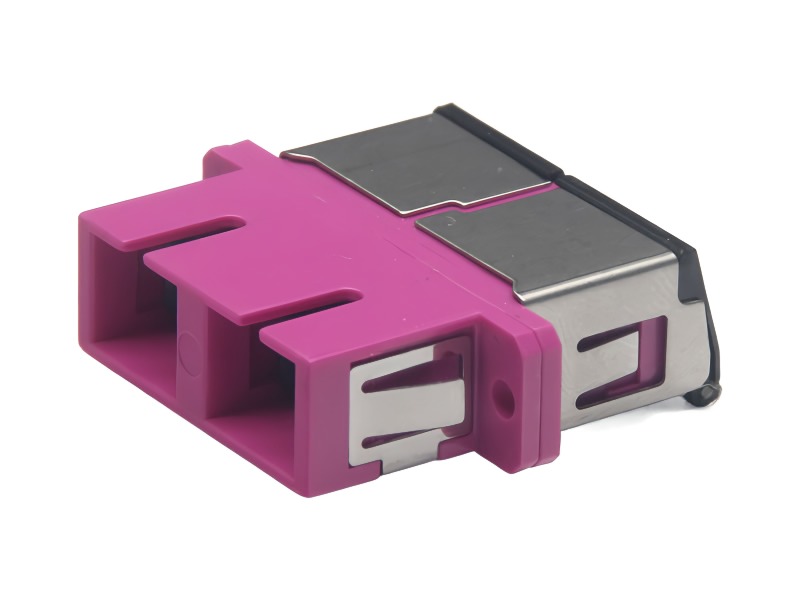

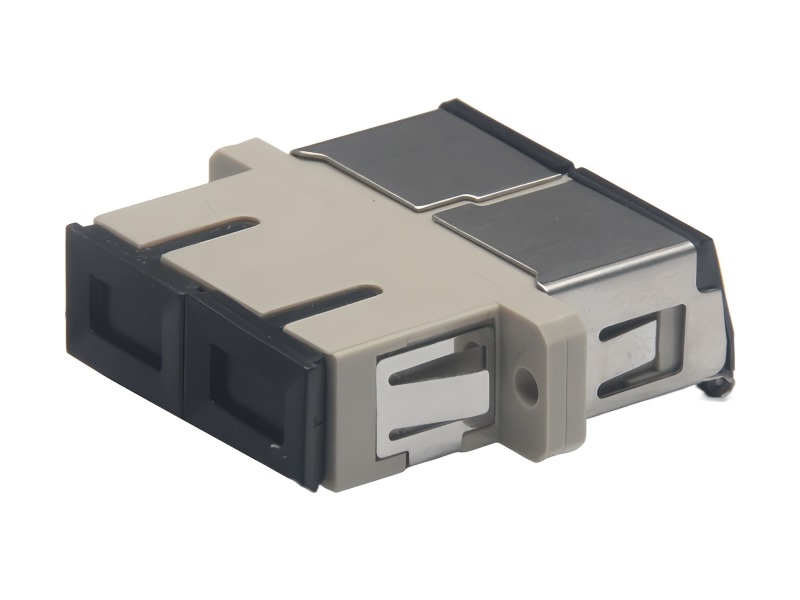

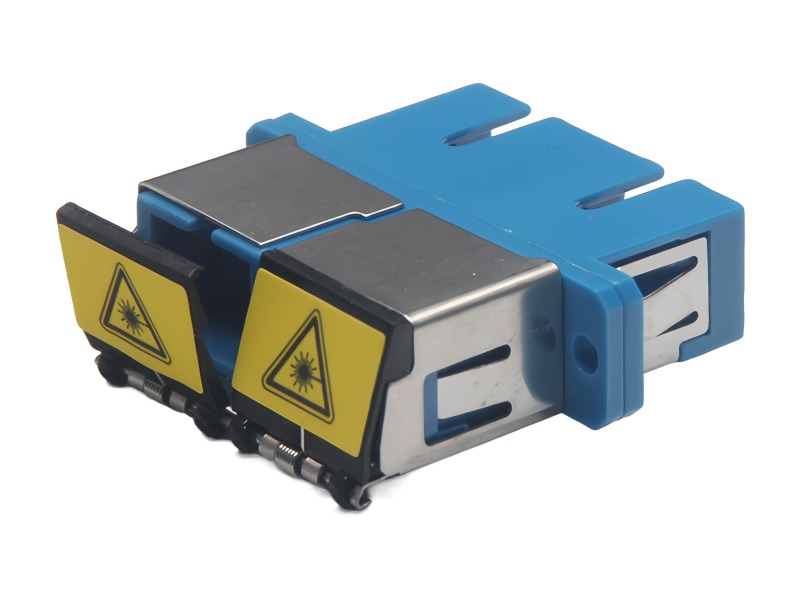

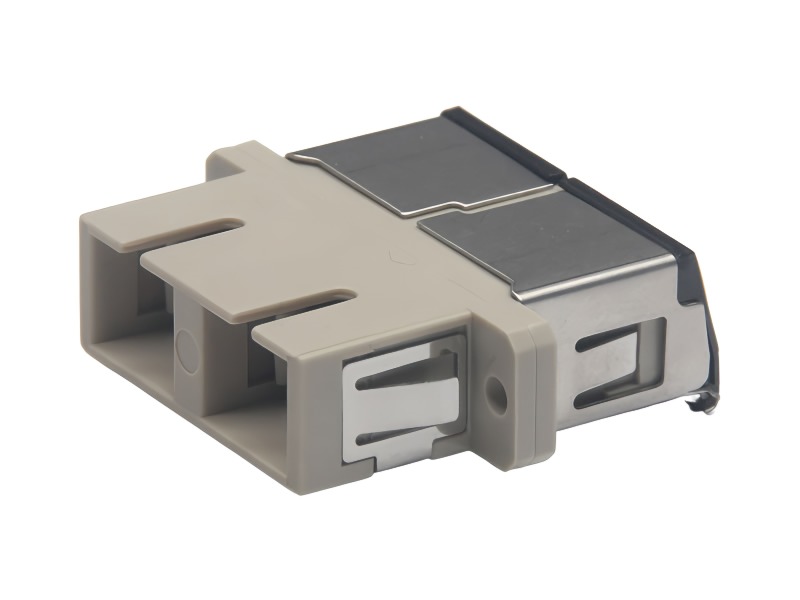

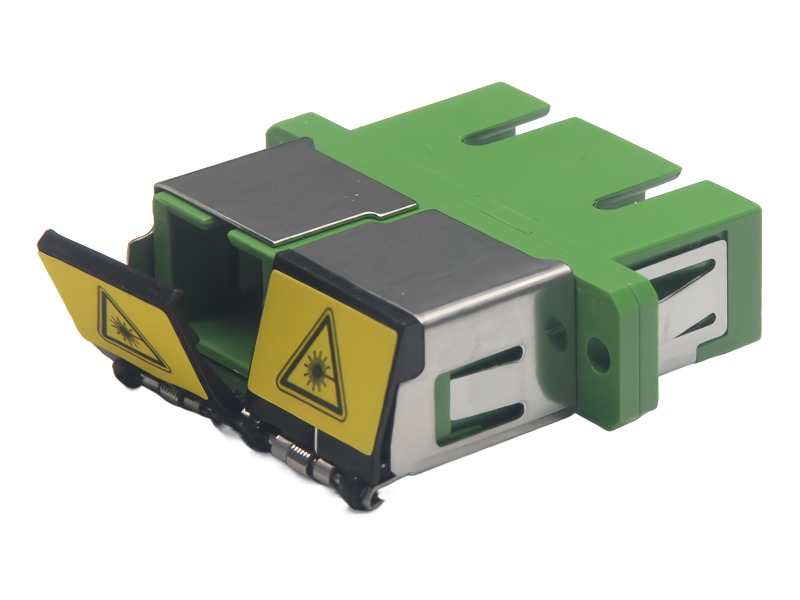

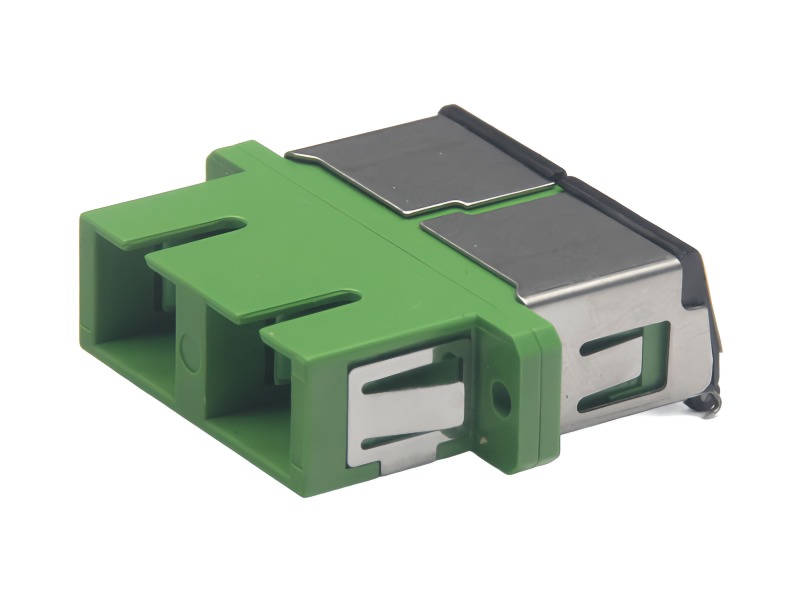

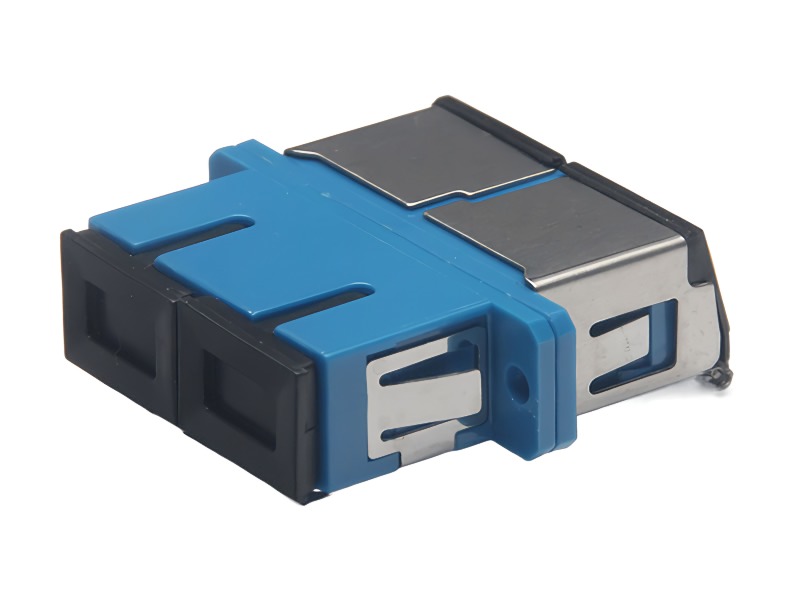

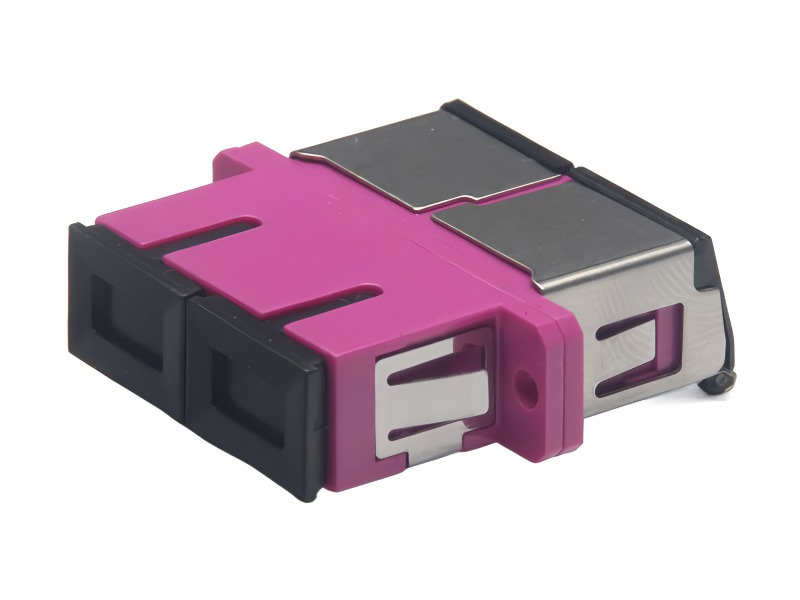

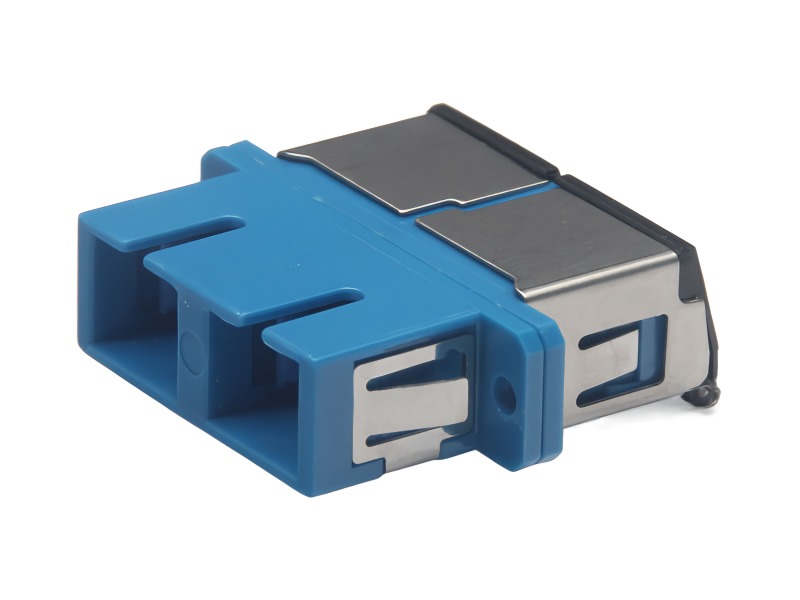

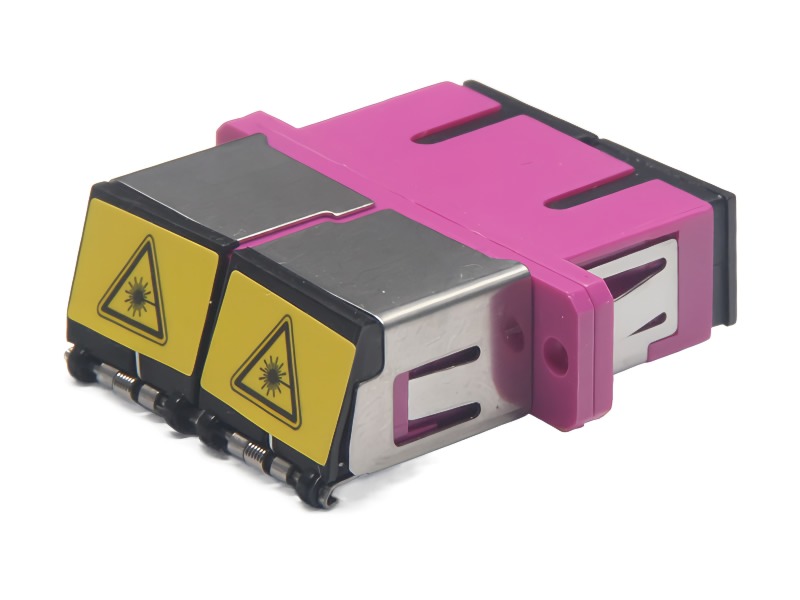

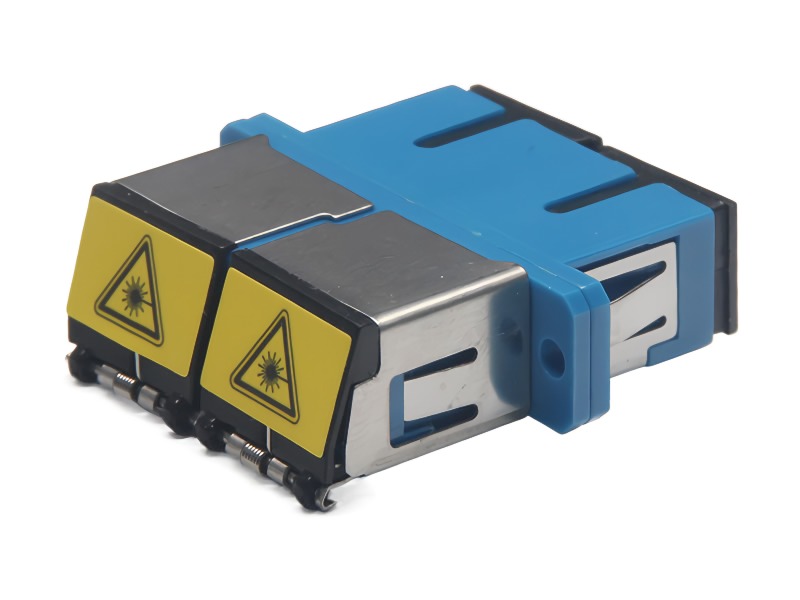

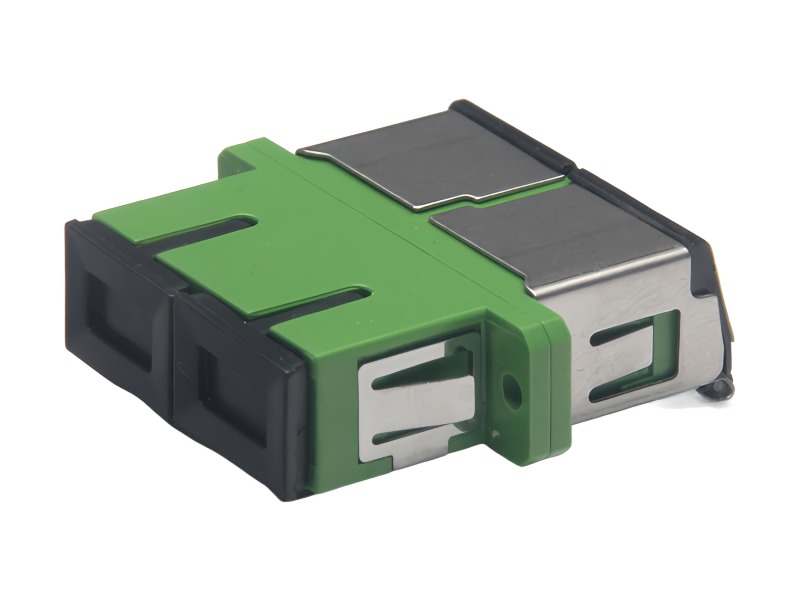

Describe: | SC Duplex Adapter-With Flange-(Metal Frame Shutter) |
| Applications |
| ● Optical fiber communication system |
| ● Optical Security, CATV, FTTx |
| ● Local, Wide and Global Area Networks |
| ● High EMI / RFI environments |
| ● Racks and Panels / Server Rooms |
| ● Test Equipment |
| Features |
| ● Low insertion loss |
| ● Environmentally stable |
| ● Good insertion/extraction life |
| ● Easy installation |
| ● Hign reliability |
| Standards Compliance |
| ☑ ISO/IEC 11801 |
| ☑ ANSI/TIA-568 D.3 |
| ☑ ISO/IEC 24764/ TIA-942 |
| ☑ IEC-60874-14 |
| ☑ IEC 61754-4 |
| ☑ RoHS, REACH SvHC compliant |
| Tech & Mech Performance | Value |
|---|---|
| Types: | SC |
| Port Path: | Duplex - 2 Fiber (Metal Frame Shutter) |
| Flange: | With Flange |
| Shell Structure: | Ultrasonic-Welded Assembly |
| Housing Material: | Engineering Plastics (ABS | PC+ABS | PBT) |
| Sleeve Material: | ZrO2 |
| Clip Gap: | 1.8 mm (Min) to 2.0 mm (Max) (Custom Supp) |
| Dust Cap Style: | FS01~FS06 (See Image For Style) |
| Colour: | Blue | Green | Turquoise | Beige (Custom Supp) |
| Magnitude: | ≥ 500 |
| Ambient Temp. (Operation): | -40°C ~ +80°C |
| Ambient Temp. (Storage): | -40°C ~ +85°C |
| Insertion Loss (dB): | Typical ≤ 0.2dB | Premium ≤ 0.10dB |
| Repeatability: | ≤ 0.10dB |
| Interchangeability: | ≤ 0.20dB |
| Allowable Engagement Force: | <19.6N |
| Tensile Strength Of Coupling: | Mechanism: 68.6N |
| Product Name | MFR NO | Sales No | Shuttering | Material | Colour | Dust Cap style |
|---|---|---|---|---|---|---|
| SC Duplex Adapter-With Flange-(Metal Frame Shutter) | K2.SC2JF21 | 00501 | Metal Frame Shutter | 01 ABS 02 PBT 11 PC/ABS |
01 Blue (RAL5015)
02 Green (RAL6029)
03 Turquoise
04 Beige (RAL 1013)
16 magenta
11 Purple
Color Customization Supported
| FS01 Gourd Style FS03 T-shaped Style FS04 Locking Style FS06 Regular Style See image for style↓ |
| FS01-Gourd Style | FS03-T-Shaped Style | FS04-Locking Style | FS06-Regular Style |
|---|---|---|---|
 |  |  |  |
 |  |  |  |
| ！Dust Cap is standard black and can be customized or matched to the product color. | |||
Detailed packaging and shipping information
46x36x33 cm
(LxWxH)
16.08 Kg
Product Only
18.43 Kg
With Packaging
Inner Packaging: Blister Box
Outer Packaging: Corrugated Carton
| Specification | Unit | Value | Remarks |
|---|---|---|---|
| Unit per Blister box | pcs | 20 | Transparent Thermoformed Box |
| Units per Carton | pcs | 2000 | 100 Blister Boxes |
| Carton Size | cm | 46×36×33 | Corrugated Carton |
| Pallet Size | cm | 120×80×150 | EU Standard |
| Cartons per Pallet | ctns | 36 | Max. 6 layers |
Q: Do you support customization??
A: Definitely yes, customization is available according to your product requirements.
Q: What is the best price you can offer?
A: The unit price will vary according to the material you want and the quantity you order.
Q: How long will it take to ship to my country?
A: Generally it will take 3 to 7 days after receiving your advance payment. The specific delivery timedepends on the items and the quantity of your order.
Q: Can l get a sample first?
A: We do offer samples before making any production so that the production is up to the buyer’s ex-pectation.Samples can be delivered within 5-8 days.
Q: Can l add my own logo?
A: Yes, OEM and ODM is available.
Q: How do you guarantee quality?
A: We have a good quality control team, Raw material is tested before production and there is strictsupervision during the production process.We will test the products after they are finished.Beforethe final packaging we will test them one by one again.
Q: Do you offer a guarantee for the products?
A: Yes, we offer a 1-2 years warranty on our formal products.
